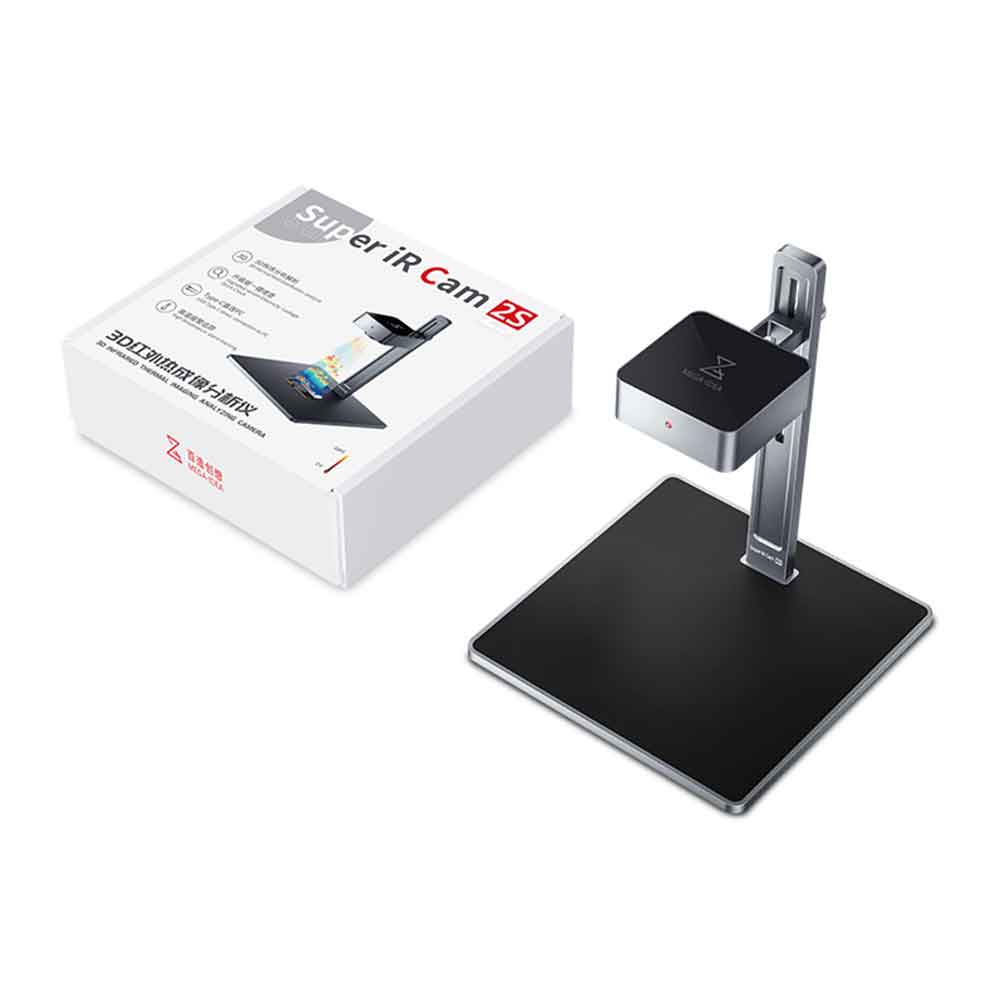

Qianli MEGA-IDEA Super iR Cam 2S 3D Infrared Thermal Imaging Analyzing Camera PCB Short Circuit Detection Quick Diagnosis Repair

Description

Qianli MEGA-IDEA Super iR Cam 2S 3D Infrared Thermal Imaging Analyzing Camera PCB Short Circuit Detection Quick Diagnosis Repair

Upgrade your electronics-repair bench or QC workstation with the QianLi Super IR Cam 2S, a professionally designed thermal imager focused on fast and accurate fault detection for PCBs, motherboards, and circuit boards. Instead of relying on trial-and-error testing, this camera lets you visually detect heat anomalies — like shorts, overheating components, or leakage paths — using infrared imaging.

With a high-sensitivity uncooled sensor and 3D thermal-field rendering, the Super IR Cam 2S displays heat distribution in a comprehensive, depth-aware manner — making it easier to analyze thermal structure, spot hot spots, and evaluate dissipation efficacy.

The built-in “Electricity Leakage Quick-Check” mode enables technicians to quickly locate faulty circuits or leakage points by adjusting temperature thresholds and scanning boards in real time. A high-temperature alarm triggers a visual alert whenever temperature crosses the preset threshold — helping to catch critical faults immediately.

Moreover, upgraded focusing and adjustable camera positioning (with 8–18 cm working distance) make it compatible with most repair benches, microscopes, or jig setups — giving flexibility for both detailed component-level inspection and full-board thermal scans.

Whether you’re diagnosing smartphone motherboards, laptop PCBs, power circuitry, or conducting QC inspections — the Super IR Cam 2S helps you catch invisible thermal faults fast, reduce repair time, and improve accuracy.

🔧 Key Features

• 3D Infrared Thermal Imaging with Depth Map — Visualizes heat distribution in 3D thermal-field view for precise thermal structure analysis.
• 256 × 192 Thermal Sensor (uncooled VOx) & 25 Hz Refresh Rate — Real-time thermal imaging suitable for live diagnostics of PCBs and motherboards.
• Full-Frame Temperature Measurement & Adjustable Thermal Range — Enables detection of overheating components, shorts, leaks, or thermal stress across whole board.
• “Electricity Leakage Quick-Check” Mode — Quickly locates faulty circuits or current leakage paths by highlighting abnormal temperature zones.
• High-Temperature Alarm & Real-Time Alert — Auto-alert when temperature exceeds set threshold; helpful to prevent further damage or dangerous overheating.
• Adjustable Focus & Flexible Working Distance (approx. 8–18 cm) — Compatible with microscopes, benches or jig mounts; good for both component-level and board-level inspection.
• USB-C Plug-and-Play Interface — Easy connection to PC or laptop, no bulky power setup; output supports JPG/MP4 for capturing thermal images and video.
• Compact & Stable Build with Adjustable Stand/Bracket — Makes installation and repositioning quick — ideal for repair benches or labs with limited space.
• Multi-Area Thermal Analysis & Comparison Mode — Divide board into zones or compare multiple heat-bands; useful for R&D, QC, and testing thermal design efficiency.
• Image & Video Capture (JPG / MP4) — Save thermal sessions for documentation, client reporting, or troubleshooting history logs.
