Qick TR1 Portable Hot Air Station

Description

The QUICK TR1 Portable Hot Air Station is a compact and efficient tool designed for professional and hobbyist electronics repair and rework tasks.

Introducing the Quick TR1 Portable Hot Air Station, your go-to solution for high-power rework in a compact footprint. Despite its portable design, this station delivers a mighty 1,000 W of heating power, allowing fast warm-up and stable performance for mobile board repair, IC desoldering, and fine soldering tasks.

Equipped with an intuitive OLED display, you can monitor and adjust temperature in real time, while the variable airflow (levels 1–10) ensures precise control depending on the component you’re working on. The high-speed 60,000 RPM fan pumps air efficiently at up to 55 L/min, striking a balance between force and control.

Engineered with safety and convenience in mind, the TR1 features a one-click “cold air” button to immediately lower the temperature and an intelligent sleep mode that triggers when the handle is placed on its holder and the heat drops to 100 °C. With its slim, lightweight body (~0.5 kg), you gain portability without sacrificing performance — making it ideal for both field repair and bench work.

Whether you’re a technician on the move or a hobbyist working in tight spaces, the Quick TR1 Portable Station gives you professional-grade thermal control in a minimal design.

✅ Key Features

• 1,000 W high-power heating for fast warm-up and stable thermal output
• Compact, lightweight design (~0.5 kg) for portability and ease of hold

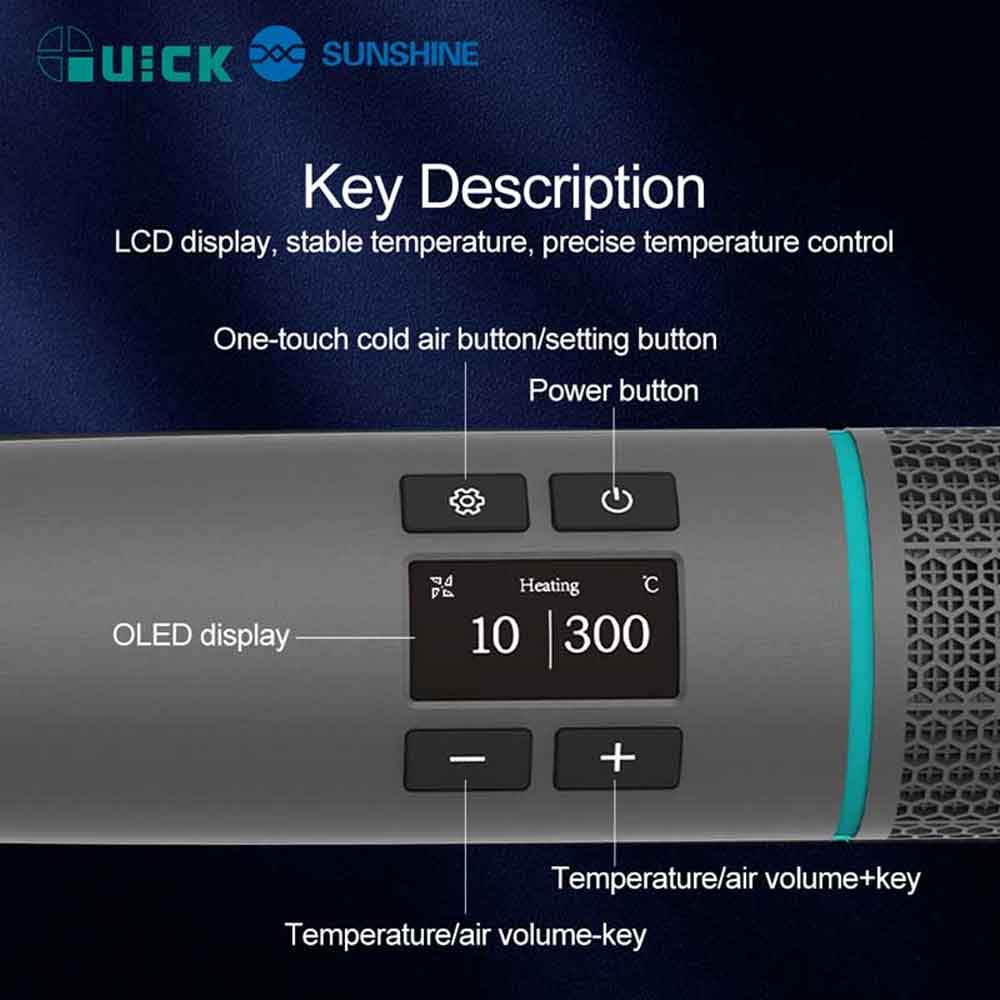

• OLED digital display provides real-time temperature feedback and control
• Variable airflow control (levels 1–10) to adapt to different component sizes
• High-speed fan (60,000 RPM) delivering up to 55 L/min airflow
• Wide temperature range: 100–550 °C for versatile applications
• Intelligent sleep mode that activates when the handle is placed in holder
• One-touch cold-air button for rapid cooling and safe operation
• Security protection features to prevent overheating and improve safety
• Includes three nozzles (typically 4.4 mm, 6.4 mm, 8.4 mm) for flexible use


  ⚙️ Technical Specifications

  Specification	Detail
  Model	Quick TR1
  Power	1,000 W
  Voltage	AC 110V / 220V
  Temperature Range	100 °C – 550 °C
  Airflow Rate	Up to 55 L/min
  Airflow Control	10-step variable setting (1–10)
  Display	OLED digital screen
  Fan Speed	60,000 RPM high-efficiency motor
  Noise Level	≤ 78 dB
  Dimensions	296 mm × Ø 40 mm
  Weight	~0.5 kg
  Nozzles Included	NK1130 (4.4 mm), NK2064 (6.4 mm), NK2084 (8.4 mm)
  Sleep Mode	Automatic when placed on holder and cooling to 100 °C
