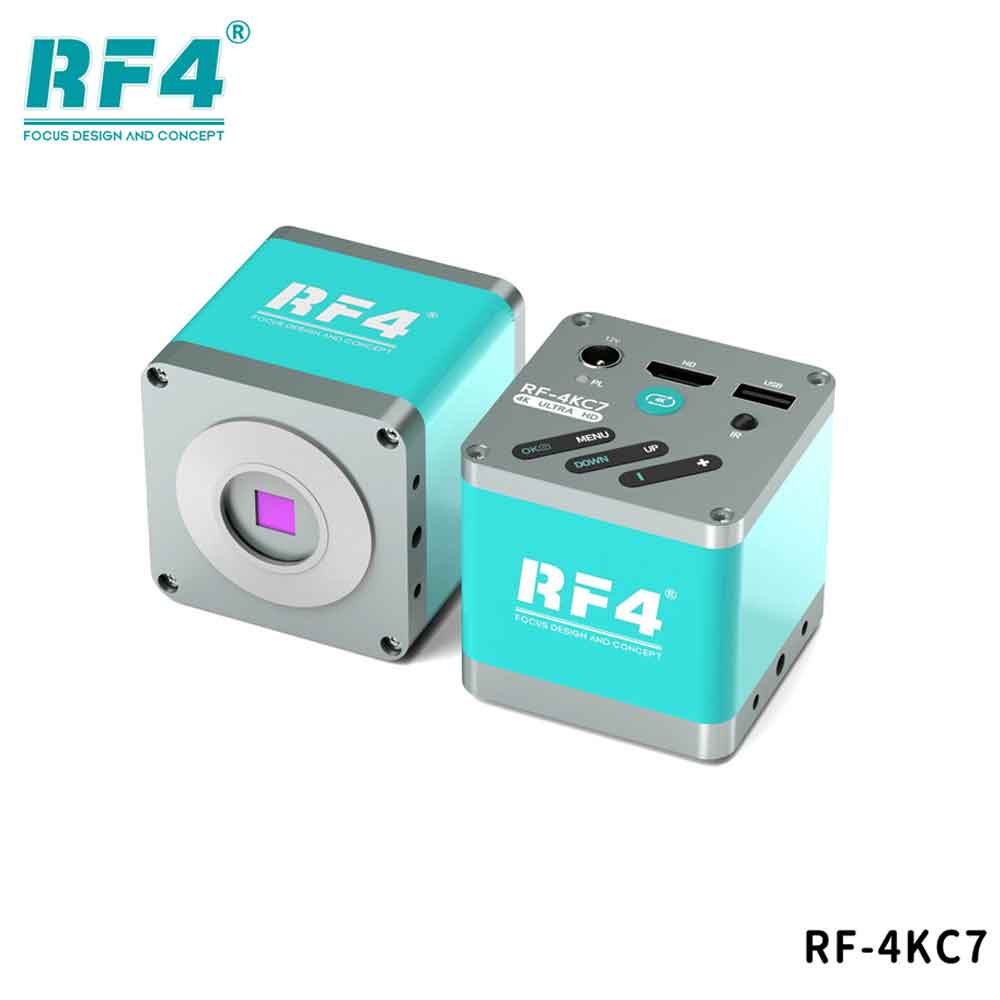

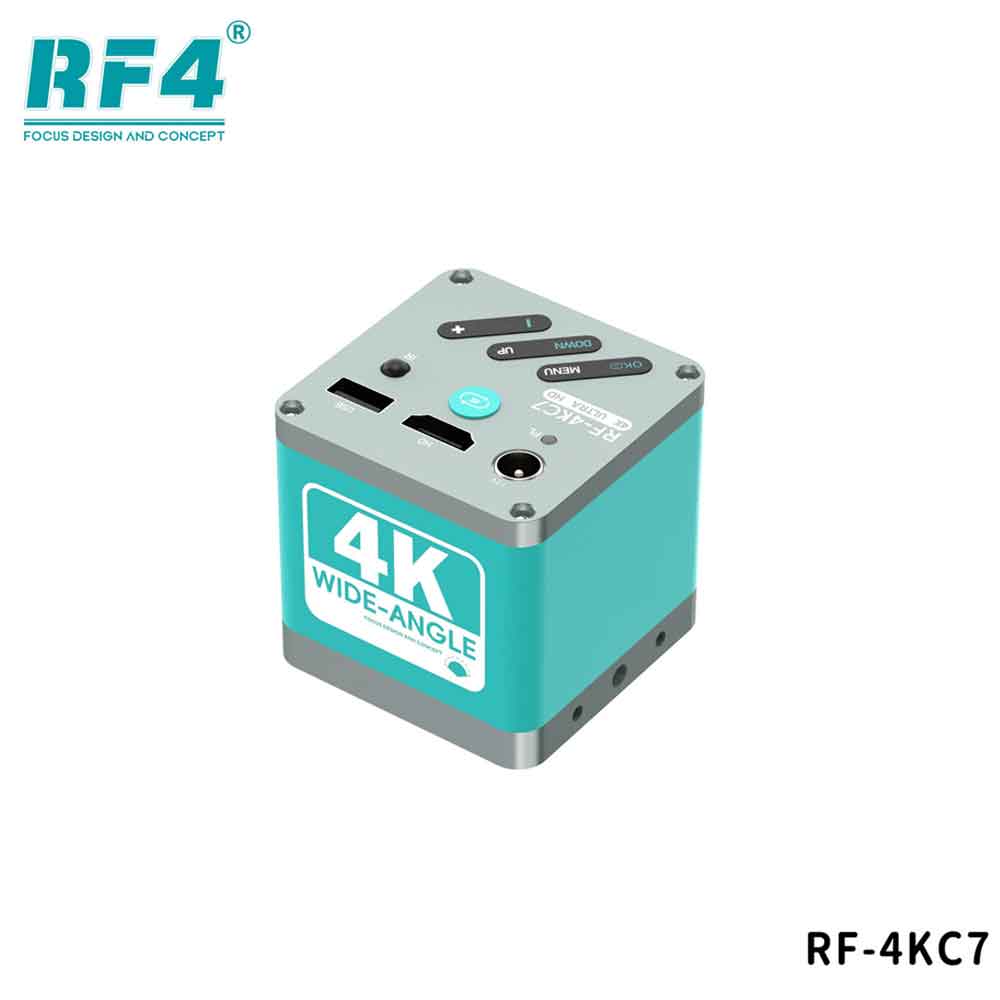

RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera for Trinocular Stereo Microscope

Rs.11,998.00

High-resolution 4K microscope camera with HDMI and USB output, Sony sensor and onboard recording — perfect for microscopes used in electronics repair, PCB inspection and detailed imaging.

RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera for Trinocular Stereo Microscope

The RF4 RF-4KC7 4K Ultra HD microscope camera is a powerful imaging accessory designed to enhance your trinocular stereo microscope setup with crisp, high-definition visuals. Equipped with an 8 megapixel Sony 1/1.8″ color CMOS sensor, this camera delivers true 3840×2160 4K UHD image capture at 30 fps, giving you exceptional clarity and detail for inspection, documentation, and analysis.

With support for both HDMI and USB 2.0 (UVC) connections, the RF-4KC7 seamlessly outputs live images to external monitors or computers — ideal for electronics repair, PCB diagnostics, lab work and quality control workflows. You can also save high-resolution JPG photos (3840×2160) and record Full HD video (1920×1080 AVI) directly to a USB flash drive (up to 32 GB), eliminating the need for external capture cards or complex setups.

Designed for professional use, this camera includes remote control support and versatile reticle overlay options (1–8 groups), perfect for precision measurements and detailed visual reference. Compact and robust, the RF4 RF-4KC7 4K Ultra HD microscope camera transforms any compatible trinocular microscope into a modern digital imaging platform.


Key Features

  • True 4K Ultra HD Imaging (3840×2160) — Capture ultra-detailed images and video for inspection and documentation.
  • Sony 1/1.8″ Color CMOS Sensor — High-quality image capture with accurate color reproduction.
  • Dual Output: HDMI & USB (UVC) — Connect to monitors or PCs for live viewing and recording.
  • High-Resolution Photo Capture — Save crisp 4K JPG stills straight to a USB flash drive.
  • Full HD Video Recording (1080p) — Record smooth video of inspection tasks (AVI format).
  • USB Flash Drive Storage Support — Save and playback images/videos without a computer (≤32 GB).
  • Adjustable Reticle Overlay — Helps with measurement and alignment during microscopy work.
  • C/CS Mount Compatibility — Easy integration with most trinocular microscope setups.
  • Remote Control Included — Convenient parameter adjustments from a distance.
  • Compact Cube Design — Space-saving 63×63×63 mm form factor fits seamlessly into existing benches.

⚙️ Technical Specifications

SpecificationDetails
ModelRF4 RF-4KC7 Large-Field 4K HD Camera
Image Sensor8 MP Sony 1/1.8″ color CMOS
Maximum Resolution3840×2160 (4K UHD) @ 30 fps
Photo Capture3840×2160 JPG
Video Recording1920×1080 AVI
OutputsHDMI & USB 2.0 UVC
StorageUSB flash drive support (≤32 GB)
Reticle Overlay1–8 groups
MountC/CS interface compatible
Operating VoltageDC 12 V
Dimensions63×63×63 mm

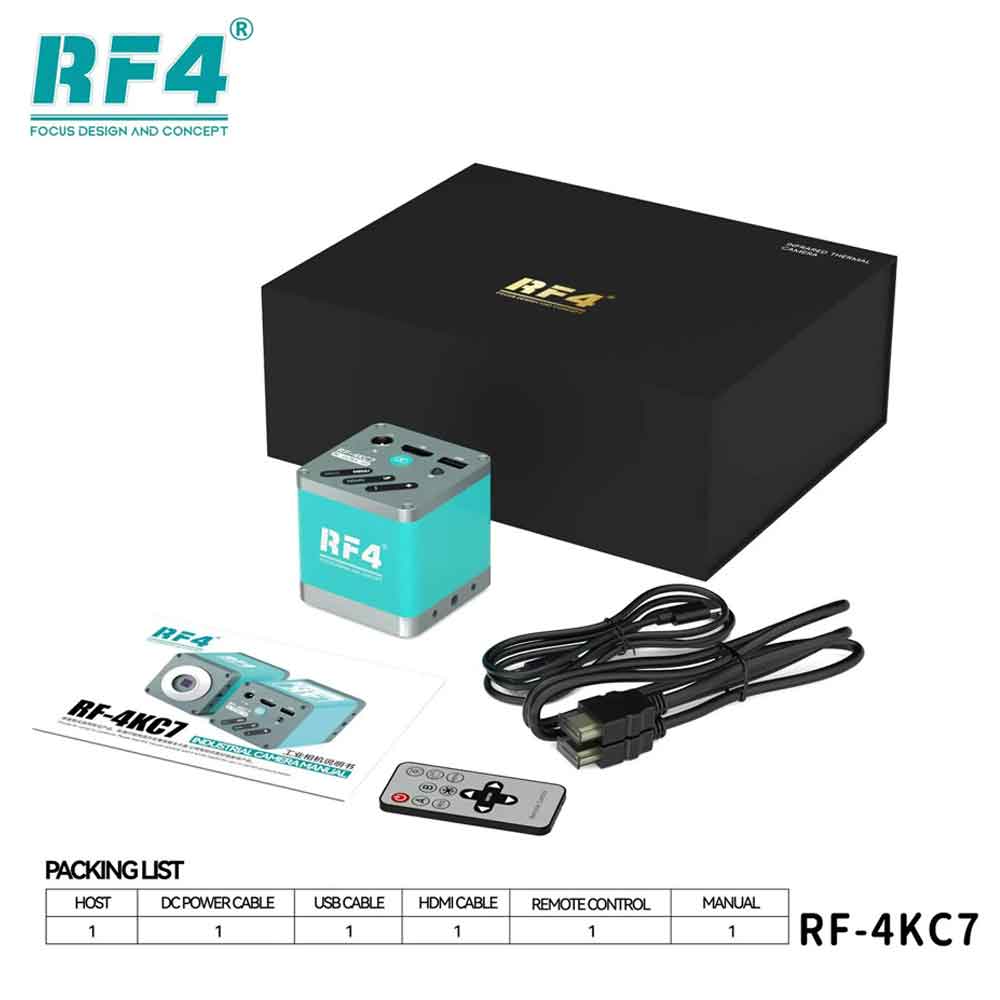

IncludesCamera, USB cable, HDMI cable, remote control, power cable







RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera RF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable CameraRF4 RF-4KC7 Large-Field 4K HD High-Resolution Adjustable Camera for Trinocular Stereo Microscope



Weight0.450 kg
Dimensions10 × 10 × 8 cm
