Description

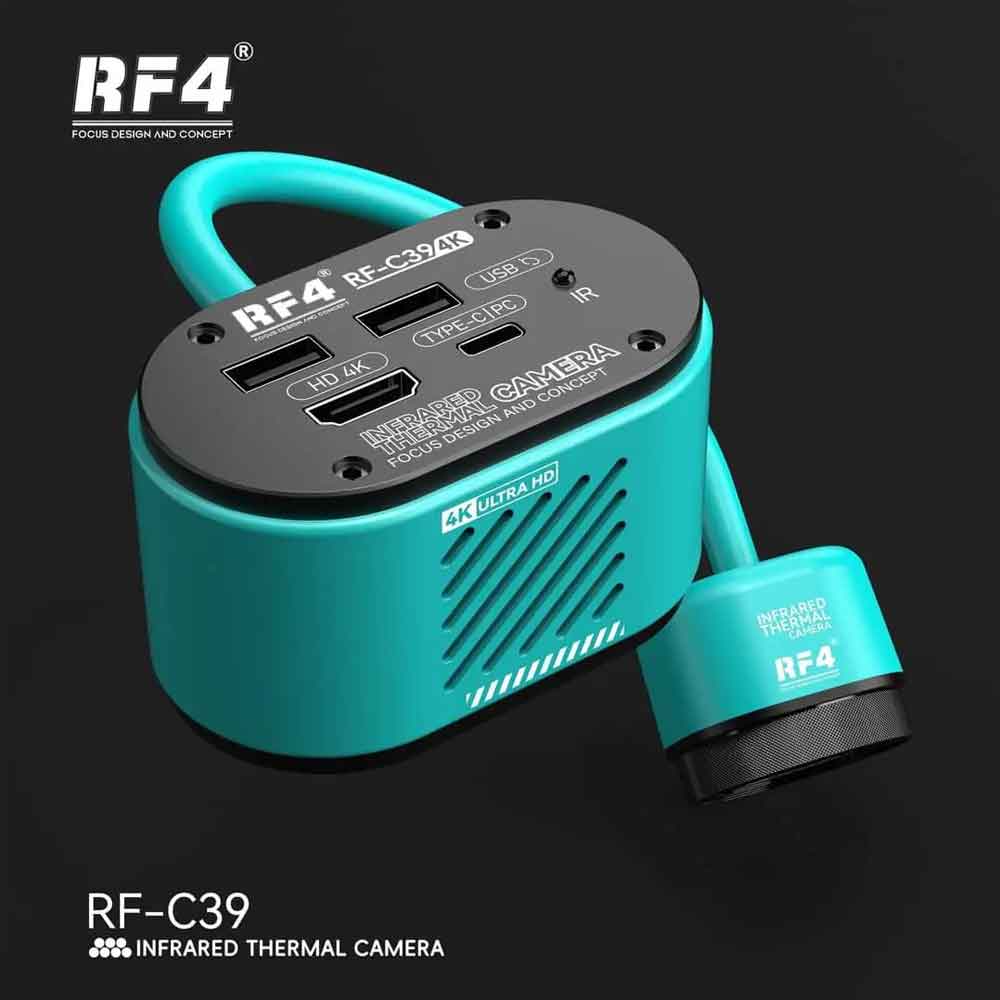

RF4 RF-C39 4K Camera Infrared Dual-Spectral Thermal Imager 2in1

Upgrade your electronics repair setup or diagnostics bench with the RF4 RF-C39 4K Thermal Camera — a powerful all-in-one imaging solution that blends ultra-HD visible light clarity with infrared thermal detection. Designed to work seamlessly with trinocular stereo microscopes, the RF-C39 lets you visually inspect components and simultaneously detect overheating, shorts, or faulty solder points — all on the same screen.

Thanks to its 8.29 megapixel Sony CMOS sensor (1/2.8″) and 4K output, you’ll get crystal-clear detail on PCBs, micro-solder joints, and tiny components. The thermal imaging function brings added diagnostic power: detect heat anomalies, track current leakage paths, and locate failing or stressed components, making motherboard-level diagnostics and repair far more precise and efficient.

This camera also offers user-friendly controls: adjustable exposure and white balance, mirror flip, on-screen cross-lines, and support for USB flash storage and direct mouse operation — meaning you don’t need a separate PC or software setup for basic use.  Whether you’re repairing mobile-phone logic boards, working on laptop motherboards, doing BGA/IC rework, or performing quality-control inspections — RF-C39 delivers high-resolution visuals plus thermal insight, helping you spot issues before they escalate.

🔧 Key Features

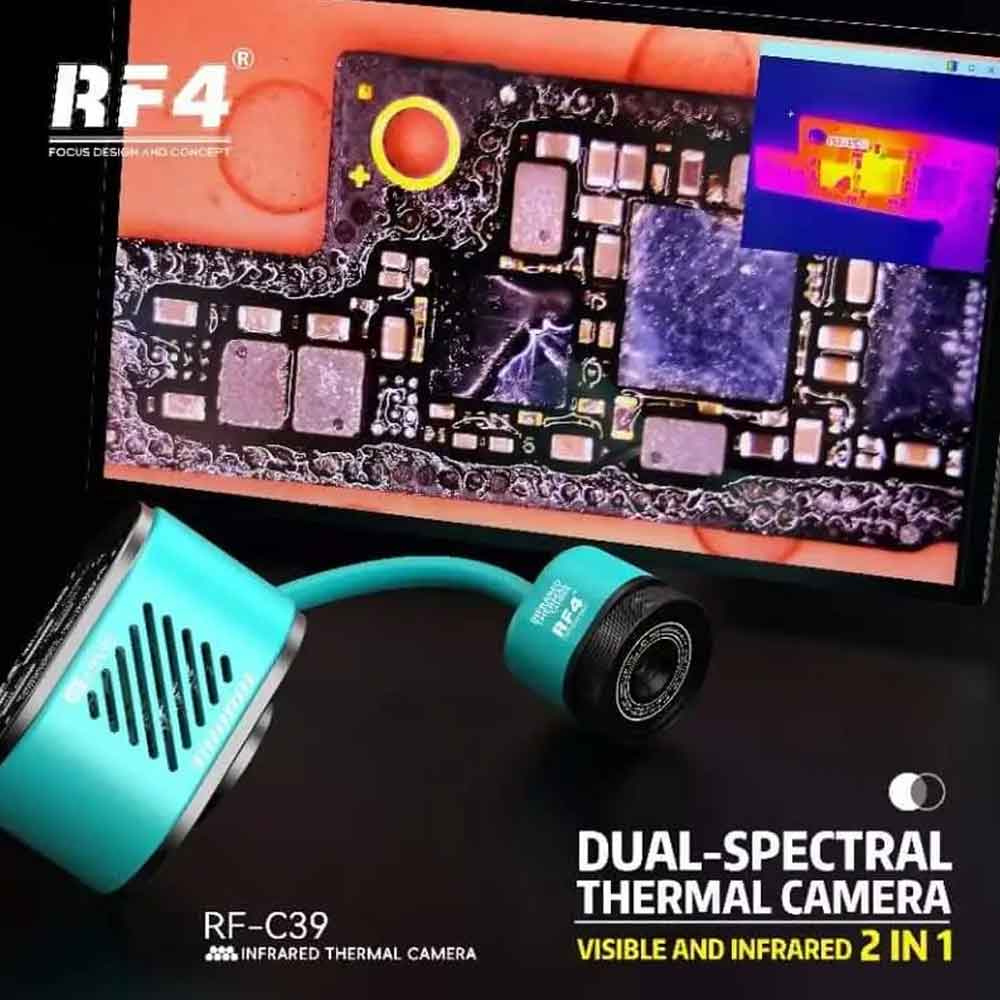

• Dual-Spectrum 2-in-1 Camera — Combines 4K visible-light imaging and infrared thermal imaging in a single unit, enabling simultaneous visual inspection and thermal diagnostics.
• High-Resolution 4K Output — 8.29 MP Sony CMOS sensor (1/2.8″), delivering sharp, detailed visuals at 3840×2160 px @ 30 fps or 1080p @ 60 fps — ideal for soldering, PCB trace inspection, and microscopic board work.
• Infrared Thermal Imaging for Fault Detection — Detect overheating components, shorts, and thermal anomalies on PCBs, motherboards, or power circuits — useful for quick fault location and quality control.
• Plug-and-Play HDMI & USB Output — Works standalone with a monitor; no need for PC or smartphone. Supports USB flash storage and mouse interface for photo/video capture and controls.
• Adjustable Imaging Controls — Manual/auto exposure, one-click or manual white balance (RGB adjustable), brightness control, mirror flip, and 8-line overlay or central cross-line for precise alignment.
• Microscope-Compatible CS Interface Design — Easily mounts to trinocular stereo microscopes for magnified board-level work, making it ideal for electronics labs, repair shops, and quality inspection benches.
• Compact & Lightweight Build — Approx. 86 × 53 × 55 mm size and ~0.322 kg weight — minimal footprint for crowded benches or microscope setups.
• Photo & Video Capture Support — Save high-resolution images or video of visual + infrared data directly to USB storage — helpful for documentation, client reporting, or training.
• Cross-Line & Annotation Support — On-screen adjustable cross-lines (color, thickness, position) for precise component alignment or measurement work under magnification.
• Multilingual Menu & Settings Memory — Supports multiple languages and retains user settings after shutdown — useful for versatile workshop or lab environments.

📐 Technical Specifications
