SUGON 8630 Pro SMD Rework Station

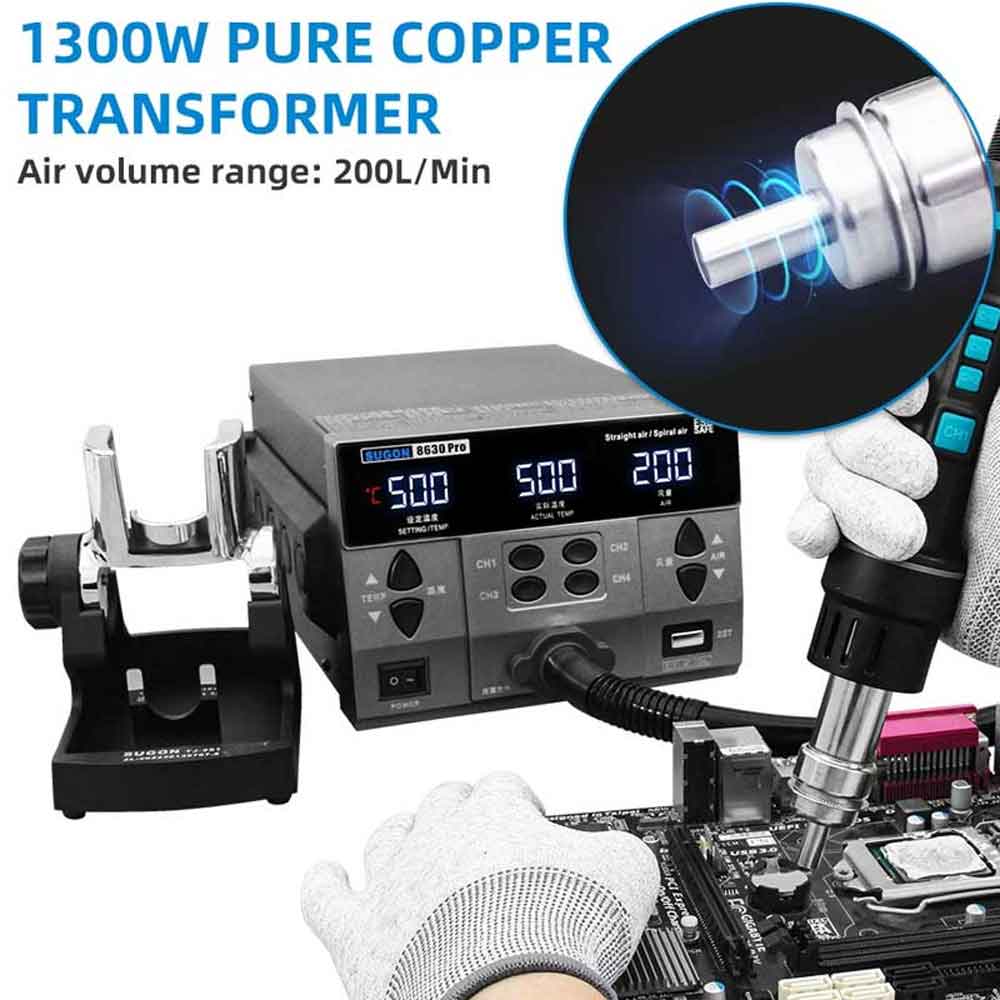

The Sugon 8630 Pro SMD Rework Station is engineered for professional electronics repair and rework. Delivering a robust 1300 W power output, it heats up rapidly to support BGA desoldering, SMD component repair, IC reballing, and motherboard-level work. Built with a pure-copper transformer and a brushless high-volume fan, the 8630 Pro ensures strong, stable airflow even during intensive tasks.

Equipped with a digital LED screen that shows both real-time temperature and air volume, this station offers precise control. Technicians can save up to 4 memory presets for temperature and airflow, allowing quick recall of commonly used settings. The magnetic handle switch instantly activates sleep mode when the hot-air gun is placed back on its stand, conserving energy and protecting the heating core.

Designed for convenience, the air gun handle is plug-in and replaceable, making maintenance and upgrades easy. The station also supports automatic high-air cooling to prolong the life of internal components. A diverse set of 8 nozzles—including straight, spiral, and oblique options—ensures you have the right tool for various repair scenarios.

With its powerful performance, intelligent design, and durable build, the Sugon 8630 Pro is a go-to choice for mobile repair shops, professional technicians, and refurbishing labs.

⭐ Key Features

• High-power 1300 W heating for rapid and efficient rework.
• Digital LED display shows set and real-time temperature + airflow
• Four memory channels to store and recall custom temperature/airflow settings
• Magnetic sleep mode — handle enters standby when placed on the bracket
• Automatic high-volume cooling to protect the hot-air core
• Pluggable handle design for easy replacement and maintenance

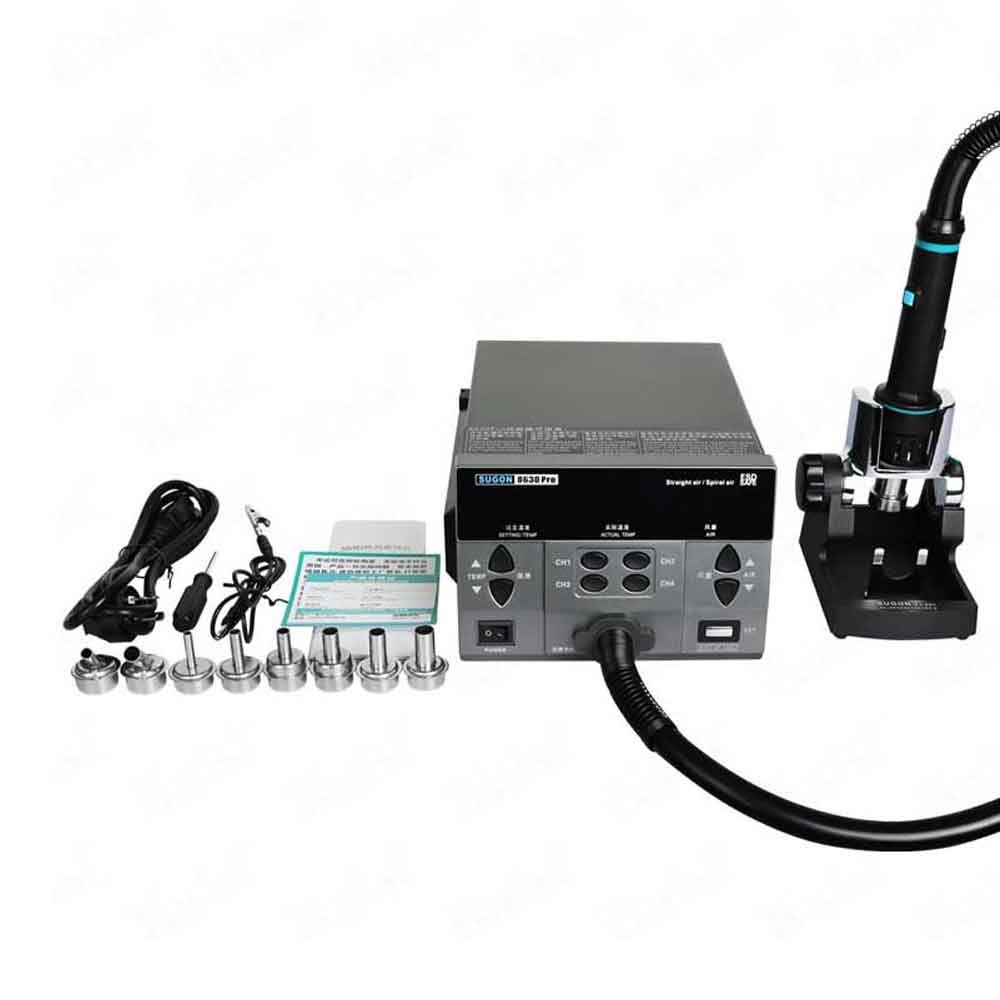

• Multiple nozzles included: straight, spiral, and oblique
• Temperature calibration & safety buzzer for precision work
• Stable and durable build with copper transformer and brushless fan


  ⚙️ Technical Specifications

  Specification	Detail
  Model	Sugon 8630 Pro
  Power	1300
  Input Voltage	AC 110 V / 220 V
  Temperature Range	100°C – 500°C
  Air Volume Range	1 – 200 (step levels)
  Nozzle Types Included	Straight (5#, 7#, 10#, 12#), Spiral (8#, 10#), Oblique (7#, 10#)
  Memory Channels	4 Presets (temperature + airflow)
  Cooling	Automatic high-air volume cooling system
  Handle	Removable, pluggable design with magnetic sleep switch
  Transformer	Pure-copper for strong, stable power delivery
  Fan Type	Brushless eddy-current fan for low noise and high durability
  Dimensions	245 × 188 × 135 mm (as per one spec)
  Weight	~3.65 kg
