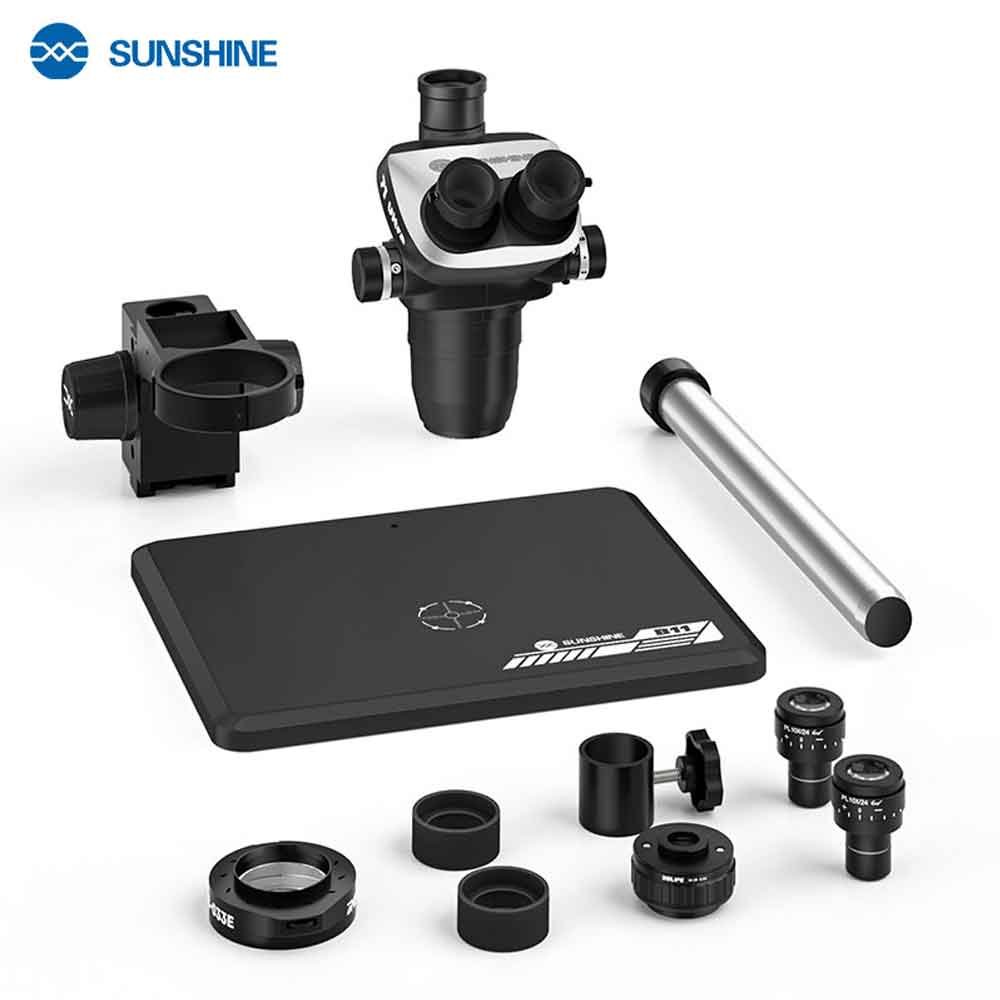

SUNSHINE 71 Ultra-B11 Trinocular Microscope – Precision Optics for Repair & Inspection

SUNSHINE 71 Ultra-B11 Trinocular Microscope – Precision Optics for Repair & Inspection

The SUNSHINE 71 Ultra-B11 trinocular microscope is a premium optical tool tailored for detailed inspection, PCB analysis, mobile repair work and precision assembly. Combining a large zoom range with crisp optics and ergonomic design, this microscope delivers clear, high-definition imaging even in low-light conditions — helping technicians spot the smallest components and defects with ease.

Featuring a continuous 0.65X–5.5X zoom with support for fixed-step adjustments, the 71 Ultra-B11 gives you smooth magnification control and a wide 1:8.5 zoom ratio that keeps the image in focus throughout. A handwheel limit stop lets you lock the zoom at preset positions for repeatable observation.

Comfortable viewing is supported by PL10X/24 adjustable flat-field eyepieces, which provide a broad 24 mm field of view, reducing eye strain during extended work. With an upgraded 350 mm working distance, you get plenty of room to use tools like soldering irons or tweezers without interfering with the optics.

The SUNSHINE 71 Ultra-B11 also includes a CTV adapter port for easy connection to microscope cameras (sold separately), and an adjustable LED illumination ring for bright, uniform lighting of your work area. Finished with a durable big aluminum alloy base (B11) for vibration-free stability, this microscope is built to handle the demands of professional labs, repair benches, and quality-control stations.

⭐ Key Features

• Wide Zoom Range: 6.5–55X (0.65x–5.5x) continuous zoom with 1:8.5 ratio for versatile viewing.
• Continuous/Fixed Zoom Conversion: Quickly switch between smooth and step magnification.
• Handwheel Limit Stop: Convenient preset zoom locking for repeat observations.
• PL10X/24 Eyepieces: Wide field, flat-field optics for comfortable, immersive viewing.
• 350 mm Working Distance: Easy tool access and manipulation beneath the lens.
• CTV Adapter Port: Ready for external camera attachment for digital imaging and documentation.
• Adjustable LED Light: Uniform illumination that enhances detail under all lighting conditions.
• Large B11 Base: Stable aluminum alloy base reduces vibration and maximizes workspace.
• Excellent Low-Light Performance: High optical transmittance and rich detail viewing.
• Ergonomic Design: Interpupillary adjustment and comfortable eyepiece positioning.

⚙️ Technical Specifications
