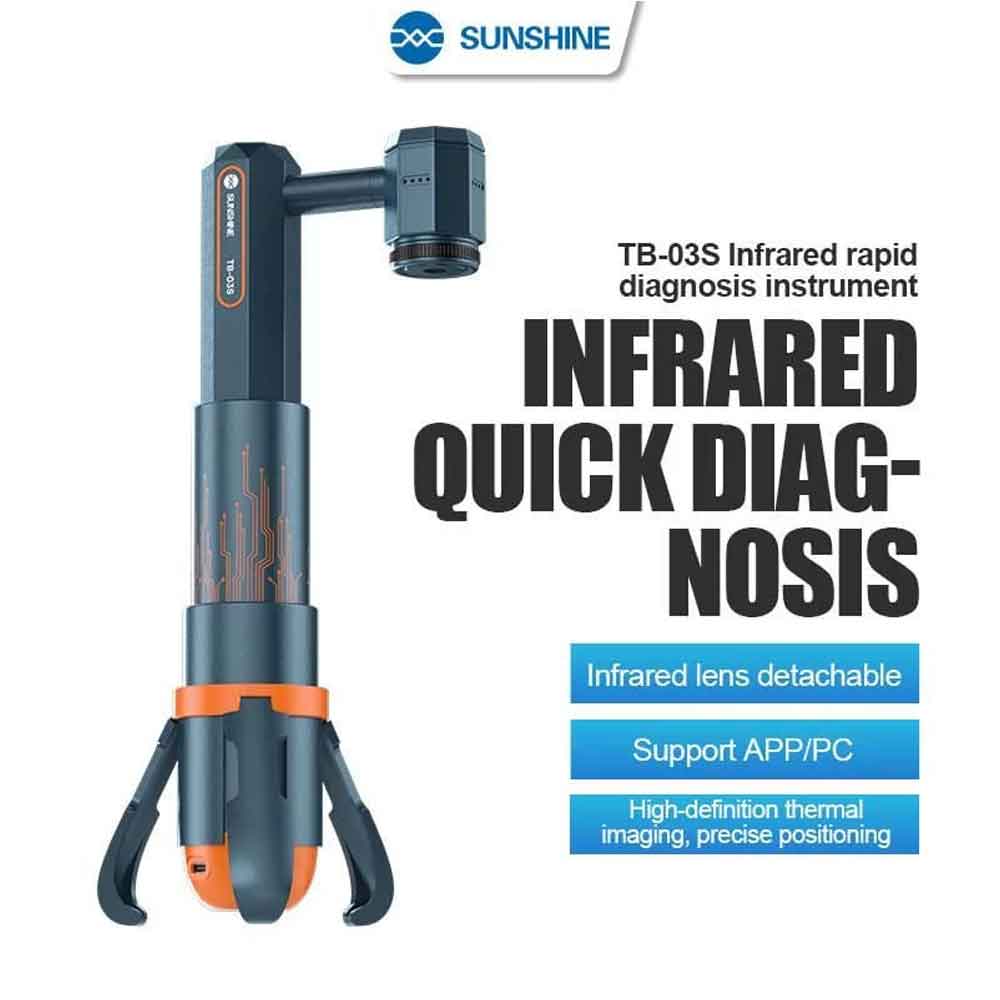

Sunshine TB-03S Infrared Rapid Thermal Camera

Description

Sunshine TB-03S Detachable HD Infrared Rapid Diagnosis Instrument for PCB Circuit Short

🔧 Key Features

• 256×192 VOx thermal sensor — delivers clear, high-definition thermal imaging to detect hotspots, overheating components or leakage on PCBs and motherboards.
• Rapid “One-Click Quick Check” mode — instantly locates high-temperature components or short circuits — even low-milliamp faults can be identified quickly and accurately.
• Detachable infrared lens + adjustable bracket — lens can be removed or mounted on a microscope via a special bracket; bracket is telescopic and foldable for convenient storage and variable-height positioning.
• Multi-platform compatibility — works with Android and iOS phones, laptops/PCs — making it usable with existing shop setups without extra hardware.
• Compact & portable build — lightweight (~265 g) and small form factor (116 × 52 × 150 mm), suitable for bench-work or field diagnostics where space is limited.
• Wide temperature detection range (–20 °C to +550 °C) — covers usual electronics operating temps and fault conditions, suitable for testing motherboards, batteries, circuits, and more.
• Flexible detection distance (5 cm – 25 cm) — allows close-up inspection of small boards/components as well as broader thermal scans, offering versatility in use-cases.
• Simple plug-and-play via Type-C — no complex setup or software installation needed; power supply at 5V DC makes it easy to integrate with standard benches/labs.
• Thermal imaging + visible display modes — supports thermal imaging mode and “quick check” mode for rapid diagnosis of shorts or overheating, improving troubleshooting efficiency.
• Ideal for PCB diagnostics, mobile repair & electronics labs — tailored toward mobile-phone motherboard repair, PCB short/ leakage detection, solder-joint fault diagnosis and general electronics maintenance.
