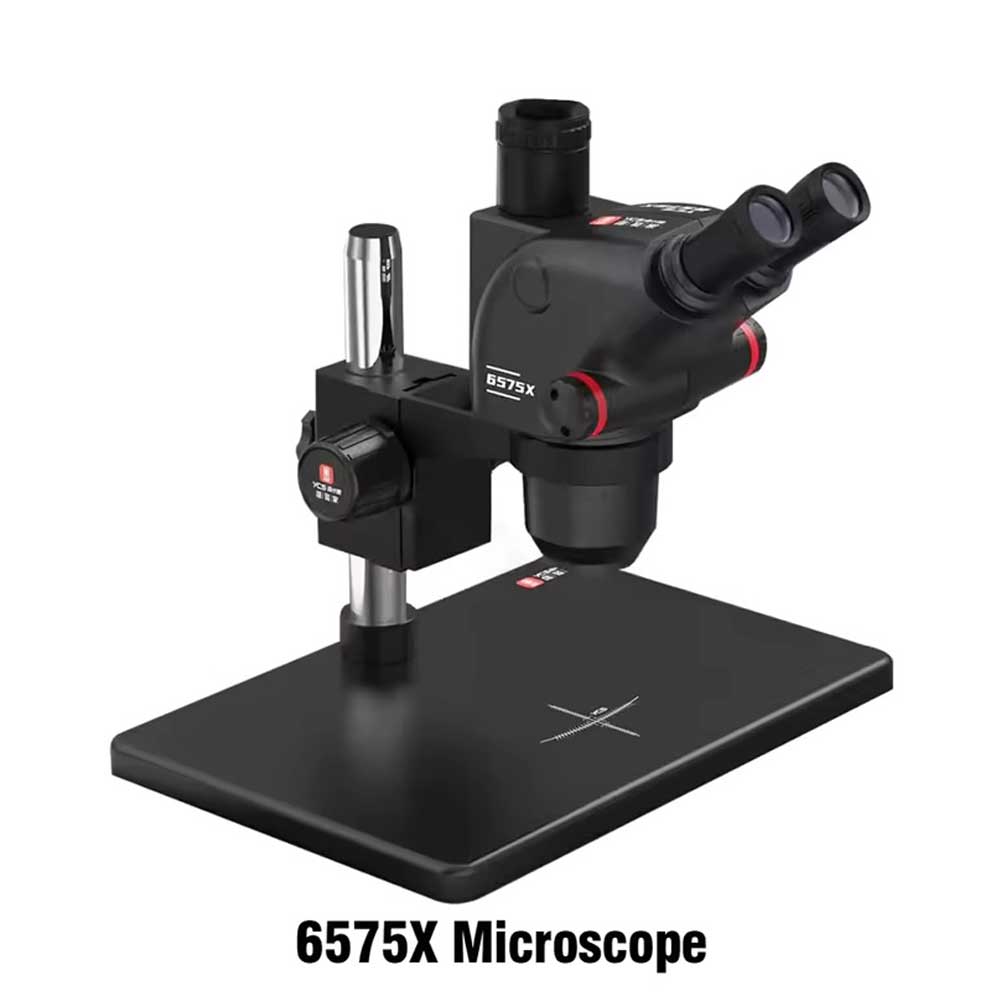

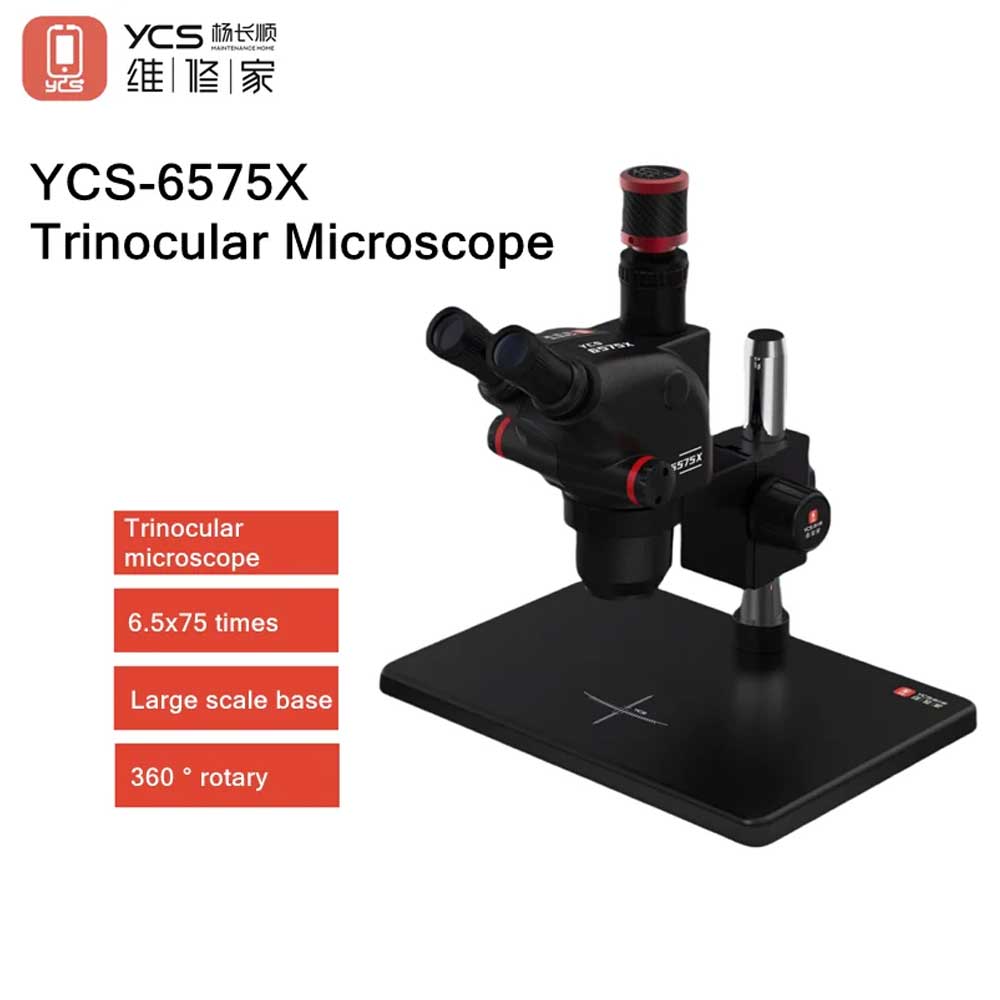

YCS-6575X Ultra HD Trinocular Microscope With Large Base

Description

YCS-6575X Trinocular Microscope – 6.5X to 75X Zoom for Precision Mobile Repair & Electronics Inspection

For technicians and repair labs working on mobile-phone motherboards, PCBs, IC soldering, or intricate electronics — the YCS 6575X Ultra HD Trinocular Microscope delivers clarity, flexibility and stability needed for high-precision tasks. This industrial-grade stereo zoom microscope combines a broad magnification range, ergonomic optics, solid construction and camera-ready design to support both human-vision inspection and digital imaging workflows.

With a continuous 6.5–75× zoom (objective 0.65×–7.5×), YCS 6575X lets you smoothly transition from a broad overview of a board to detailed inspection of solder joints or IC pins — all without swapping objective lenses.  The trinocular head (45° incline, 360° rotatable) supports live viewing through eyepieces as well as connection of a camera via the included 0.5× CTV adapter — perfect for documentation, live monitoring or customer-proof imaging.

Wide-field WF10×/23 mm high-eyepoint eyepieces ensure a comfortable, fatigue-free viewing experience, even during prolonged repair sessions. Meanwhile, the heavy-duty metal base and stable stand provide excellent vibration resistance — a must when soldering, reworking or manipulating tiny components.

Integrated 144-LED ring illumination (touch-adjustable) delivers bright, shadow-free light, ensuring clear visibility even on dense multi-layer PCBs or under low-light workshop conditions.

Whether you’re doing detailed soldering, BGA/IC rework, board-level diagnostics, quality-control inspection, or documenting repair work — YCS 6575X gives you the optical performance and build quality of a pro-grade bench microscope.

🔧 Key Features

• Continuous 6.5–75× Zoom Magnification — from broad board-level overview to detailed component inspection without changing lenses.
• Trinocular Head with Camera Port (0.5× CTV adapter included) — supports simultaneous binocular viewing and camera/monitor output for live video or capture.
• WF10× / 23 mm Wide-Field, High-Eyepoint Eyepieces — offer large field of view and comfort for long-duration work, reducing eye strain.
• Large & Stable Heavy-Metal Base with Adjustable Stand — ensures vibration-free work surface essential for soldering and precise electronics repair.
• Integrated 144-LED Ring Light (Adjustable Brightness) — delivers even, shadow-free illumination, ideal for fine solder joints, dense PCBs, and small components.

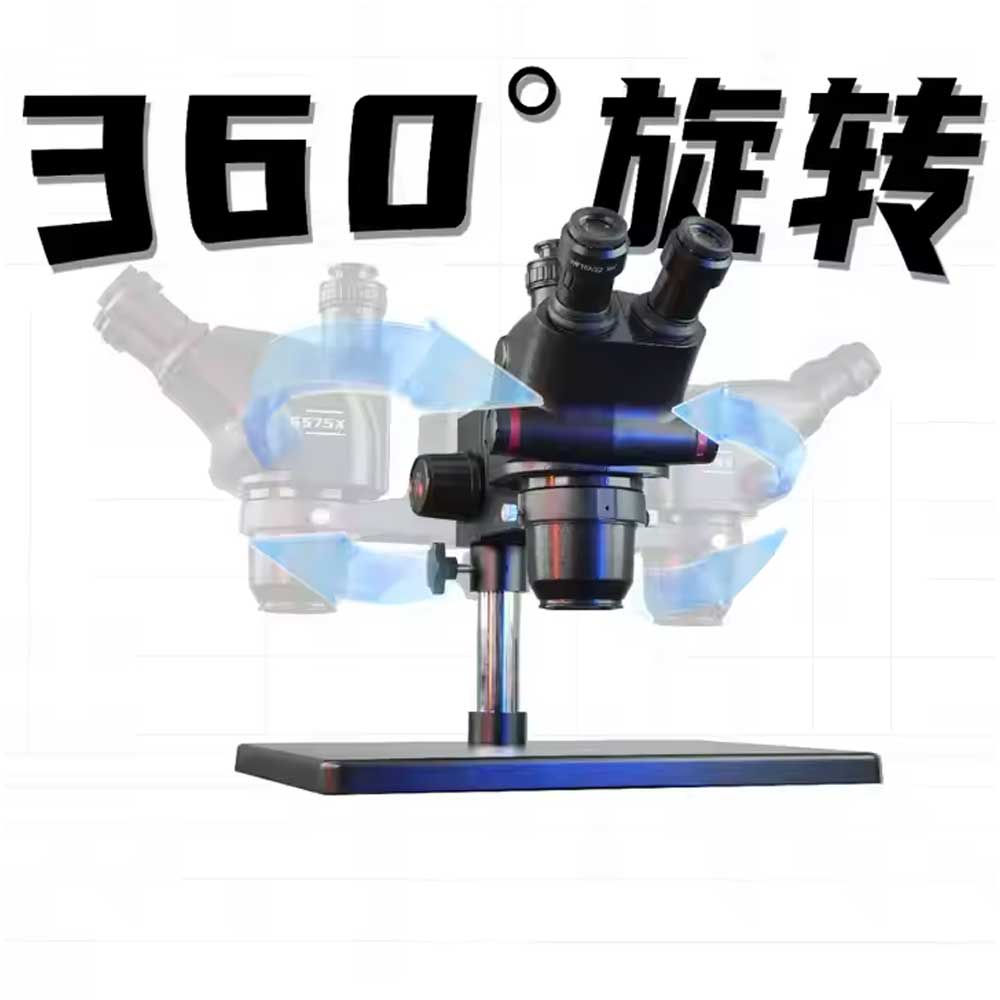

• Ergonomic Head Design (45° Incline + 360° Swivel) — convenient angle and rotation make it comfortable to use over long repair or inspection sessions.
• Synchronous Zoom for Eyepiece + Camera Output — ensures what you see in eyepieces gets mirrored exactly in camera/monitor — no re-focusing needed.
• Versatile Use for Electronics Work, R&D & QC — ideal for mobile-phone board repair, laptop motherboard maintenance, IC/BGA soldering, PCB inspection, quality control labs, and more.
• Durable Build with High-Quality Optical Glass — ensures long-term reliability, sharp imaging, and resistance to repeated workshop use.
• Expandable / Camera-Ready Setup — works with standard C-mount cameras and accessories (e.g. HDMI/USB 4K camera modules) for upgradeable digital imaging.

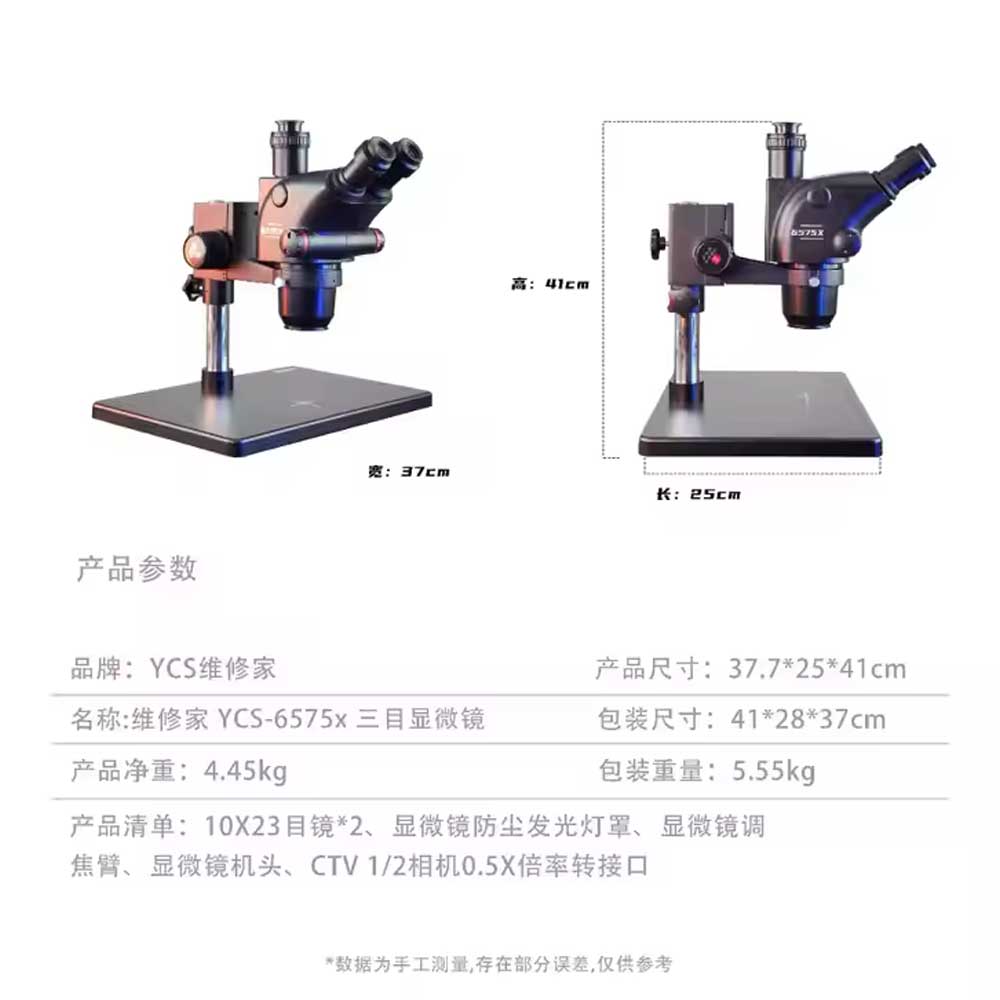

📐 Technical Specifications
